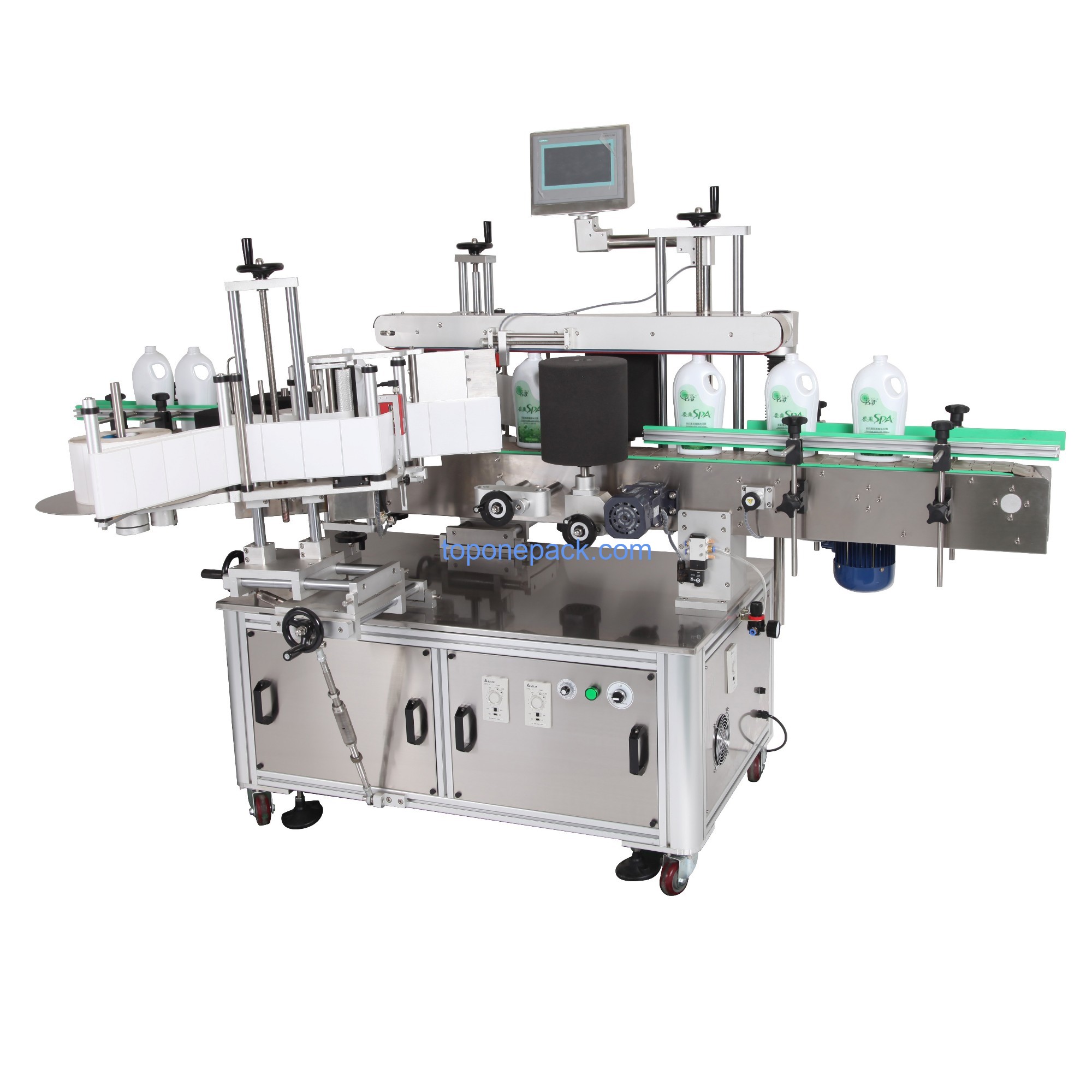

Two side labeling machine(TO-660)

Model

TO-660

Label height

Max 120mm  (adjustable)

Inner diameter

of the label roll

φ76 mm

Outer diameter

of the label roll

Max φ350mm

Precision

±1mm

Capacity

0-30m/min (adjustable)

Voltage

AC 220V，50/60Hz.

Power

1500W

G.W.

250Kg

Dimension

L2500  mm×W1300  mm×H1400  mm

Objects

Objects with flat or slightly arched surface

Function

The labeling machine is made of stainless steel 304 and

anodizing high-class aluminium alloy, and the labeling part adopts imported famous step motor, all of the electric sensors are from Japan or German; the controlling system adopts microcomputer with liquid crystal touch screen which can remember 10 groups digits. This labeling machine can be installed on any product lines, and can change labeling methods according to the actual needs, and matches well to the components of the product line.
