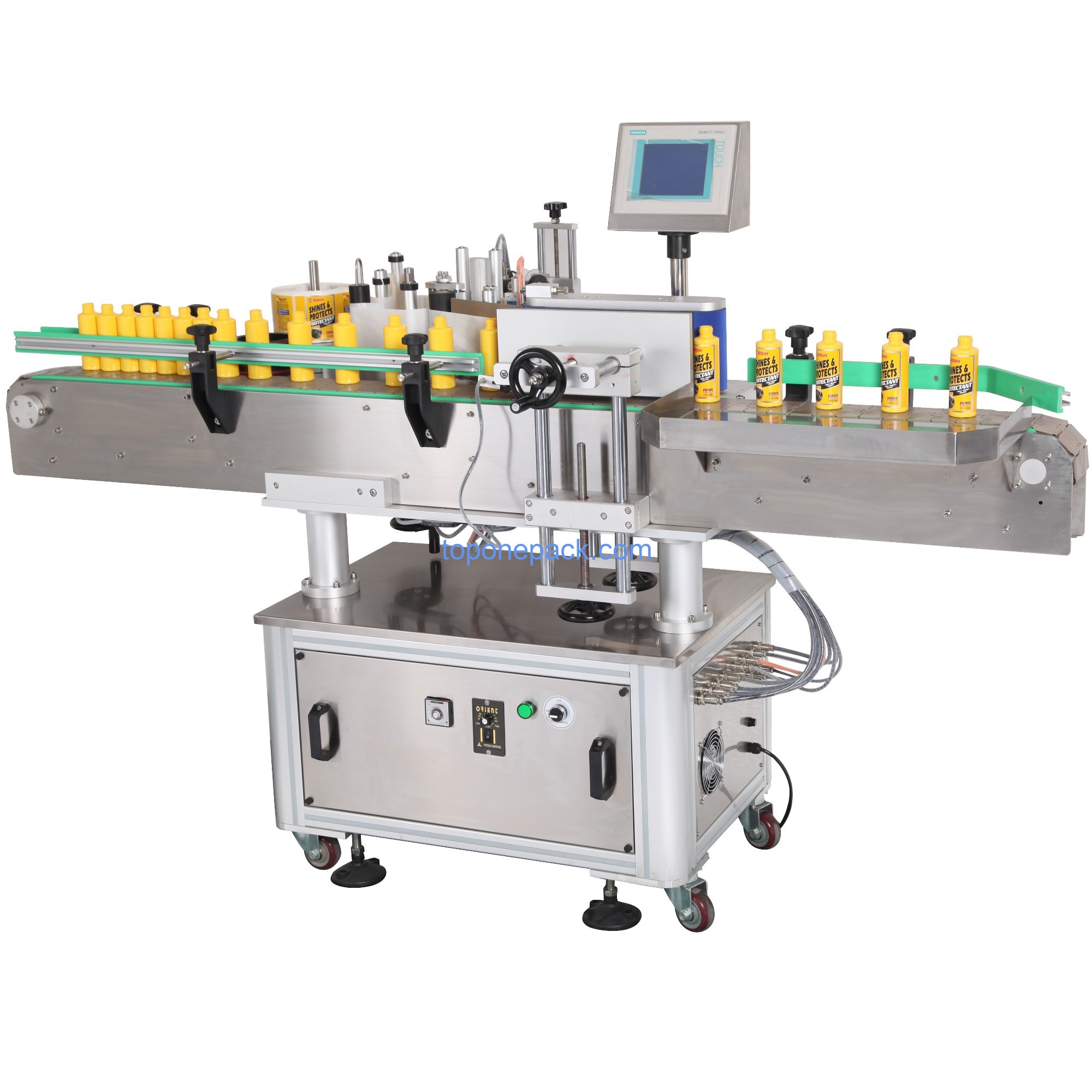

Round bottle labeling machine(TO-630)

Model

TO-630

Label height

Max 120mm  (adjustable)

Inner diameter

of the label roll

φ76 mm

Outer diameter

of the label roll

Max φ350mm

Precision

±1mm

Capacity

1-30m/min (adjustable)

Voltage

AC 220V，50Hz.

Power

1200W

G.W.

180Kg.

Dimension

L2100  mm×W900  mm×H1300  mm

Objects

Round or cylinder shape objects

Function

The labeling machine is made of stainless steel 304 and

anodizing high-class aluminum alloy, and the labeling part adopts imported famous step motor, all of the electric sensors are from Japan or German; the controlling system adopts microcomputer with liquid crystal touch screen which can remember 10 groups digits. This labeling machine can be installed on any product lines, and can change labeling methods according to the actual needs, and matches well to the components of the product line.
