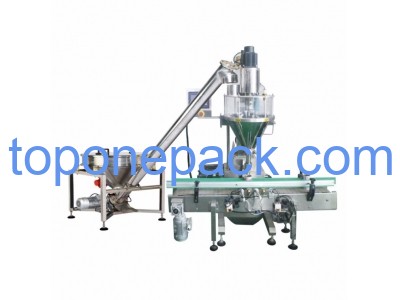

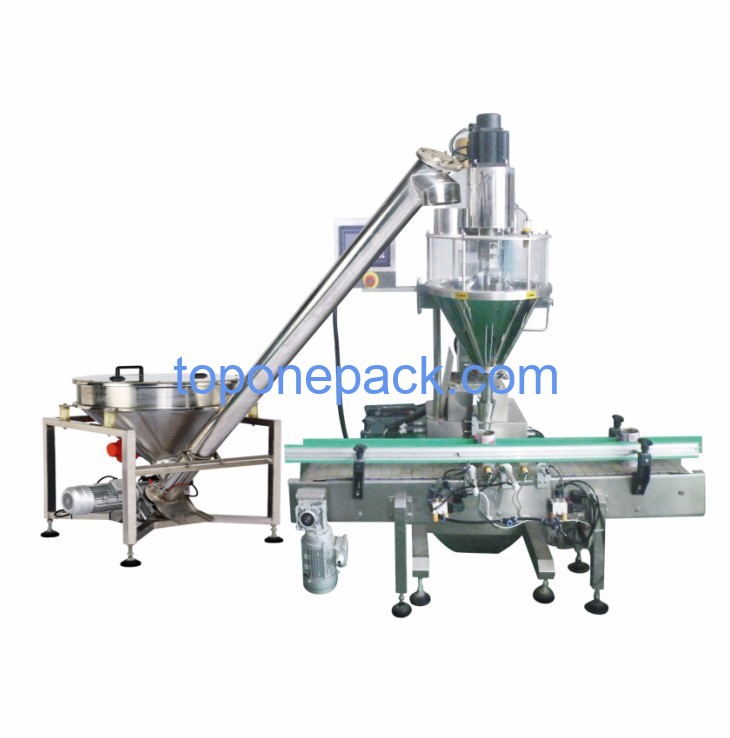

Automatic powder filling machine
automatic powder filling machine
- Model：
Features:
This machine is suitable for automatic canned powder and small particles, to complete the bottles, cans and automatic positioning, filling measurement, which consists of a screw measuring machine, chain conveyor and a pneumatic device, with unscrambler, capping machine, labeling machine composed of a package of canned lines. 304stainless steel structure, the hybrid transparent bins, the level of open, no tools can be easily removable and washable, servo motor, drive screw, PLC, touch screen and weighing module controls, a variety of products to adjust parameters to store spare, transform different screw can be adapted to a fine powder, small particles and other materials, with height adjustment handwheel and easy operation.
Technical parameters:
Package weight | 100~1000g(change screw) |
Packing accuracy | 50g～100g≤±1% |
Filling speed | 15-30times/min |
Power | Three phase 380V or 220V, 50HZ |
Total power | 1.5KW |
The whole weight | 300KG |
Whole volume | L1500×W1100×H1700mm |
Hopper volume | 30L |
Control system | PLC+touch screen |
