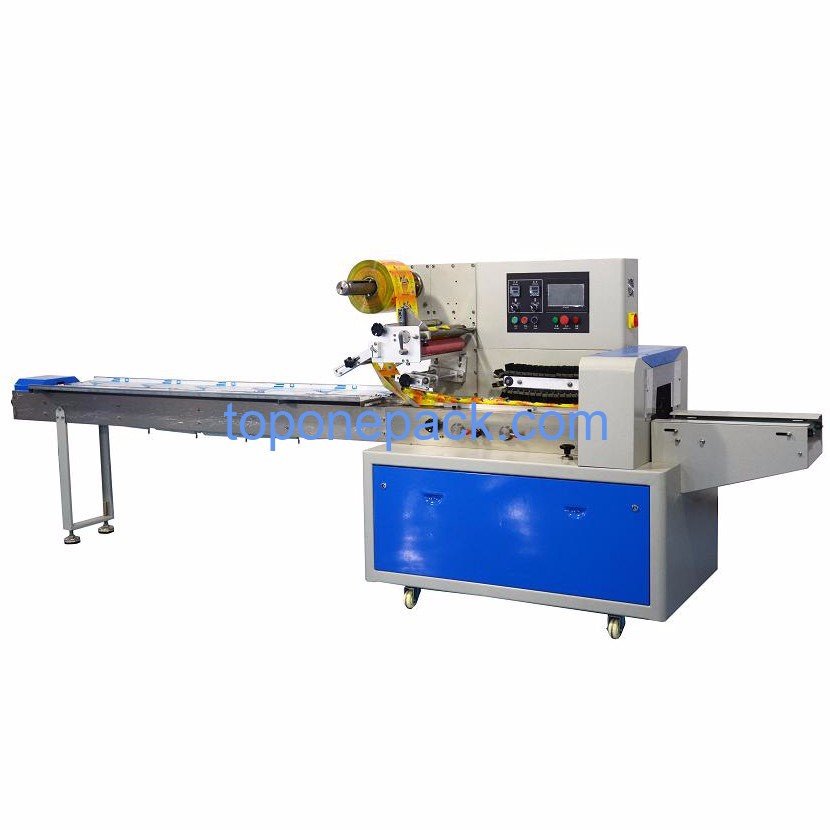

Horizontal packing machine(TO-250S)

Model

TO-250S

Bag size

L

65—190mm or 120-280mm

W

30—110mm

H

5—40mm

Film width

90--250mm

Capacity

40—200bag/min

Motor power

0.6Kw.

Heater power

2.1Kw.

Voltage

AC220V, 50Hz.

G.W.

450Kg.

Dimension

L3770*W670*H1320mm

Usage

Various solid objects with regular shape, such as, moon cake, pies, bread, instant noodles, biscuits, candies, medicines, daily articles, hardware, small boxes, etc.

Features

1.Dual frequency control system, simple structure, easy to maintain, low abrasion, long life span;

2.The main control circuit adopts PLC+touch screen, dual-frequency controller, human-computer interface, easy to operate;

3.The packing speed and the bag length is controlled by the dual-frequency controller, step less speed adjuster, vast adjustable width span, can match well to the product line;

4.High sensitive photo lens tracks automatically, no need to adjust by hand after setting parameters;

5.Each sealing temperature is controlled separately, suitable to various packing materials, sealing is perfect and firm.
