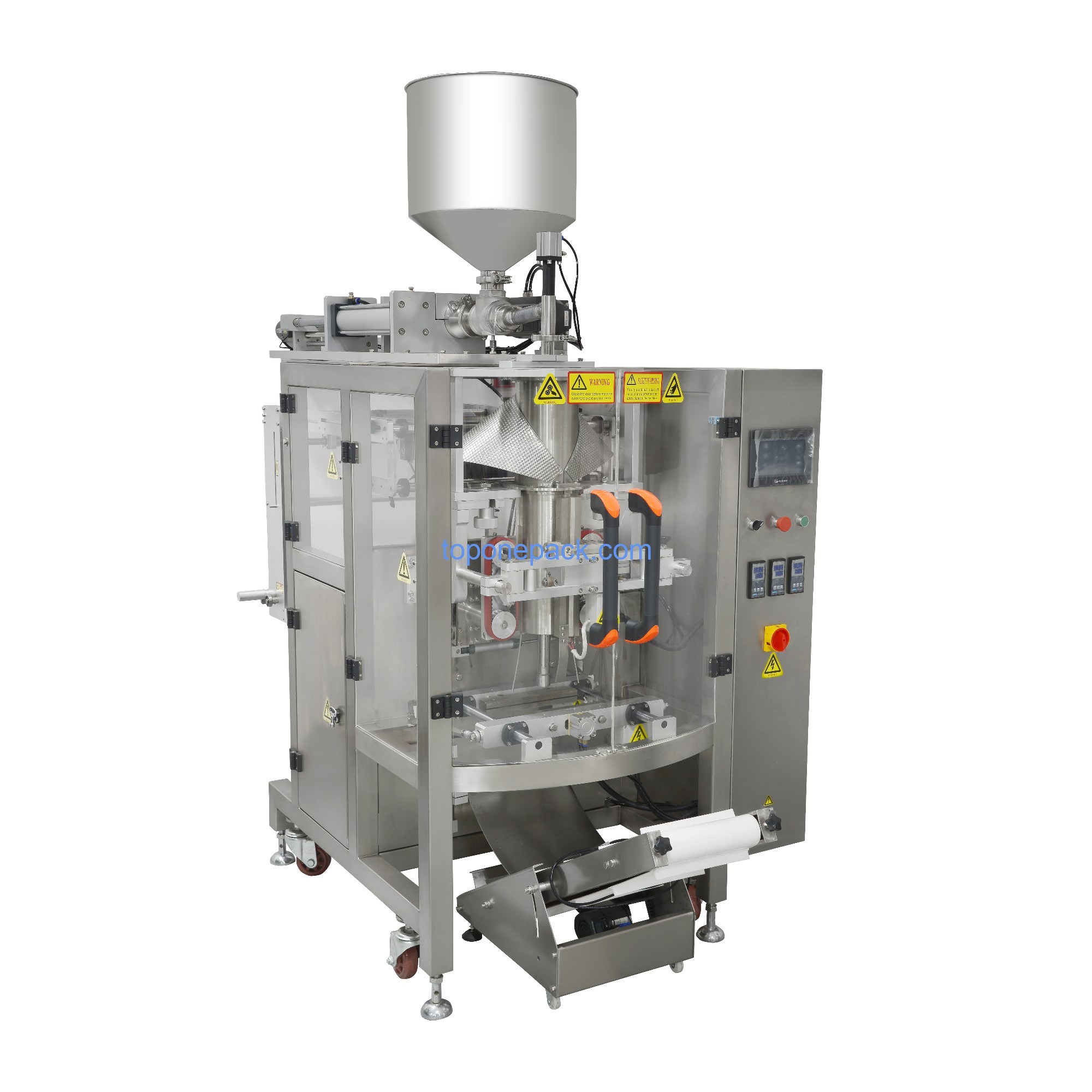

Liquid coating packing machine(TO-420YB)
liquid coating packing machine
- Model： TO-420YB
Name | Liquid coating packing machine |
Model | TO-420YB |
Filling | Piston pump |
Bag style | Back seal, pillow bag |
Volume | 200-2000ml |
Bag size | L 80-300mm; W 50-200mm |
Speed | 15-40bags/min |
Control style | PLC control system + English screen |
Body shell | Stainless steel |
Power | 3.0Kw. |
Air consumption | 0.8Mpa 0.3m³/min |
Power supply | 3 phase 4 wire, 50Hz |
Weight | G.W650kg |
Dimension | L1330mm W1140mm H1800mm |
Film Material | Paper/polyethylene；cellophane/polyethylene；plated aluminum/polyethylene；BOPP/polyethylene；nylon/ polyethylene |
Article | All kinds of liquid or paste product, such as oil, water, etc. |
Main function | This machine can automatically measure, make bags, fill, seal, cut, and print codes. |
